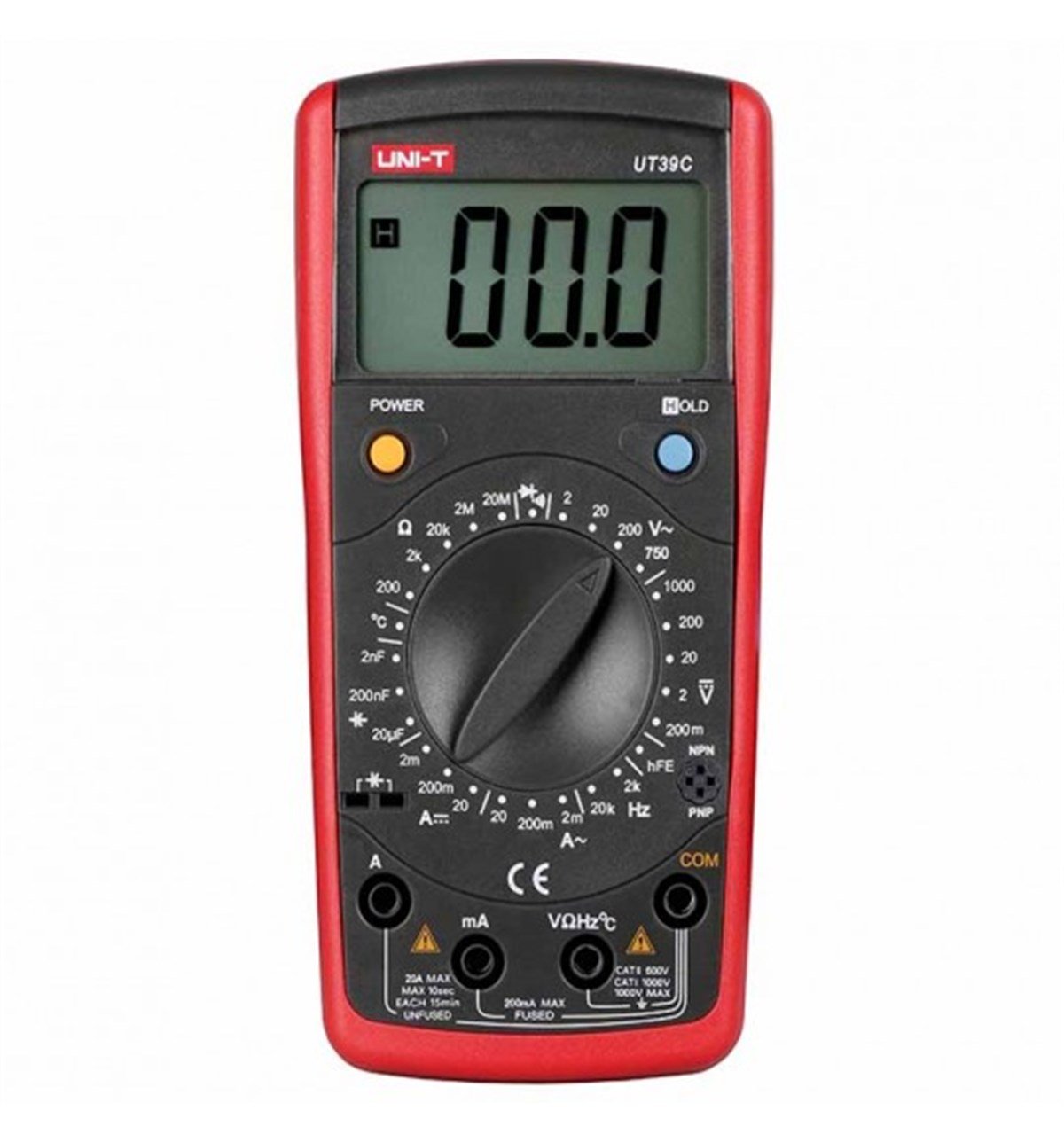

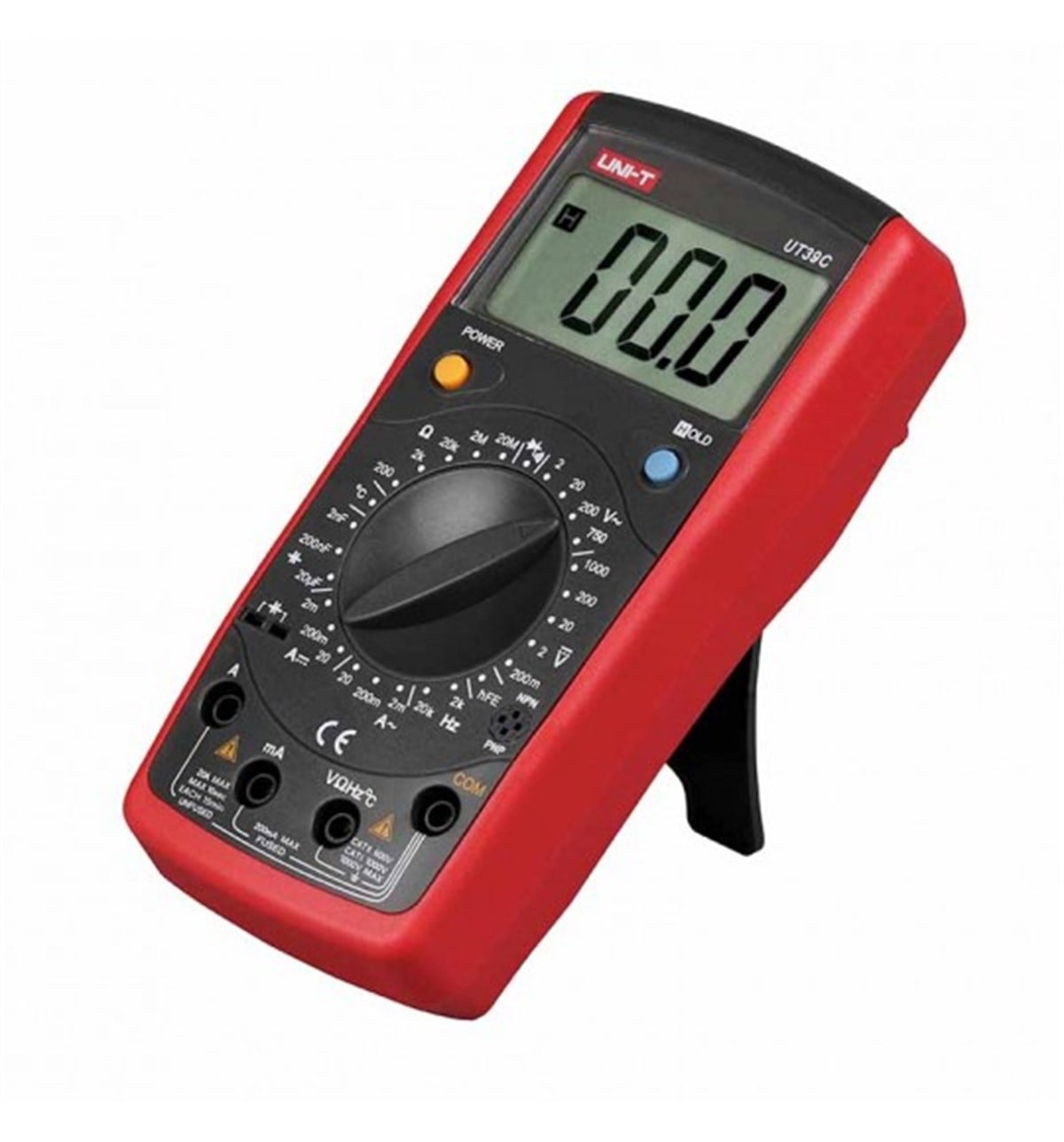

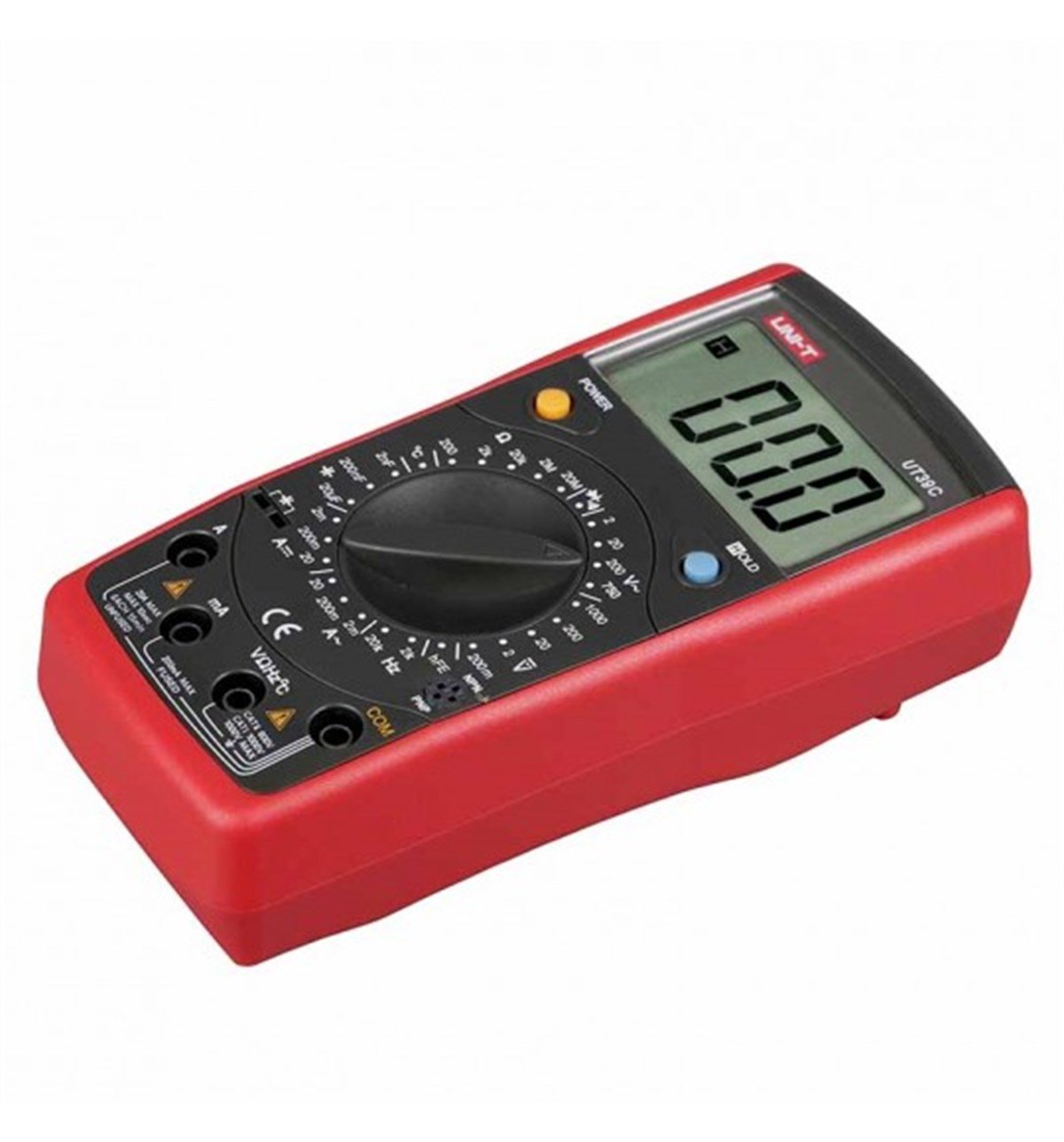

UT39C Dijital Ölçü Aleti Teknik Özellikleri

Basic Functions	Range	Best Accuracy
DC Voltage	200mV/2V/20V/200V/1000V	(0.5%+1)
AC Voltage	2V/20V/200V/750V	(0.8%+3)
DC Current	2mA/200mA/20A	(0.8%+1)
AC Current	2mA/200mA/20A	(1%+3)
Resistance	200W/2kW/20kW/2MW/20MW	(0.8%+10)
Capacitance	2nF/200nF/20µF	(4%+3)
Temperature (°C)	-40°C ~ 1000°C	(2%+8)
Frequency	2kHz/20kHz	(1.5%+5)
Special Functions
Diode
Continuity Buzzer
Transistor
Data Hold
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement	Around 10MW
Max. Display		1999

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	61 x 32mm
Product Colour	Red and Grey
Product Net Weight	310g (Including Holster)
Product Size	172 x 83 x 38mm
Standard Accessories	Test Lead, Battery, English Manual, Point Contact Temperature Probe, Holster
Optional Accessories*	Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2)
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	40pcs
Standard Carton Measurement	598 x 418 x 340mm (0.085 CBM Per Standard Carton)
Standard Carton Gross Weight	22kg
