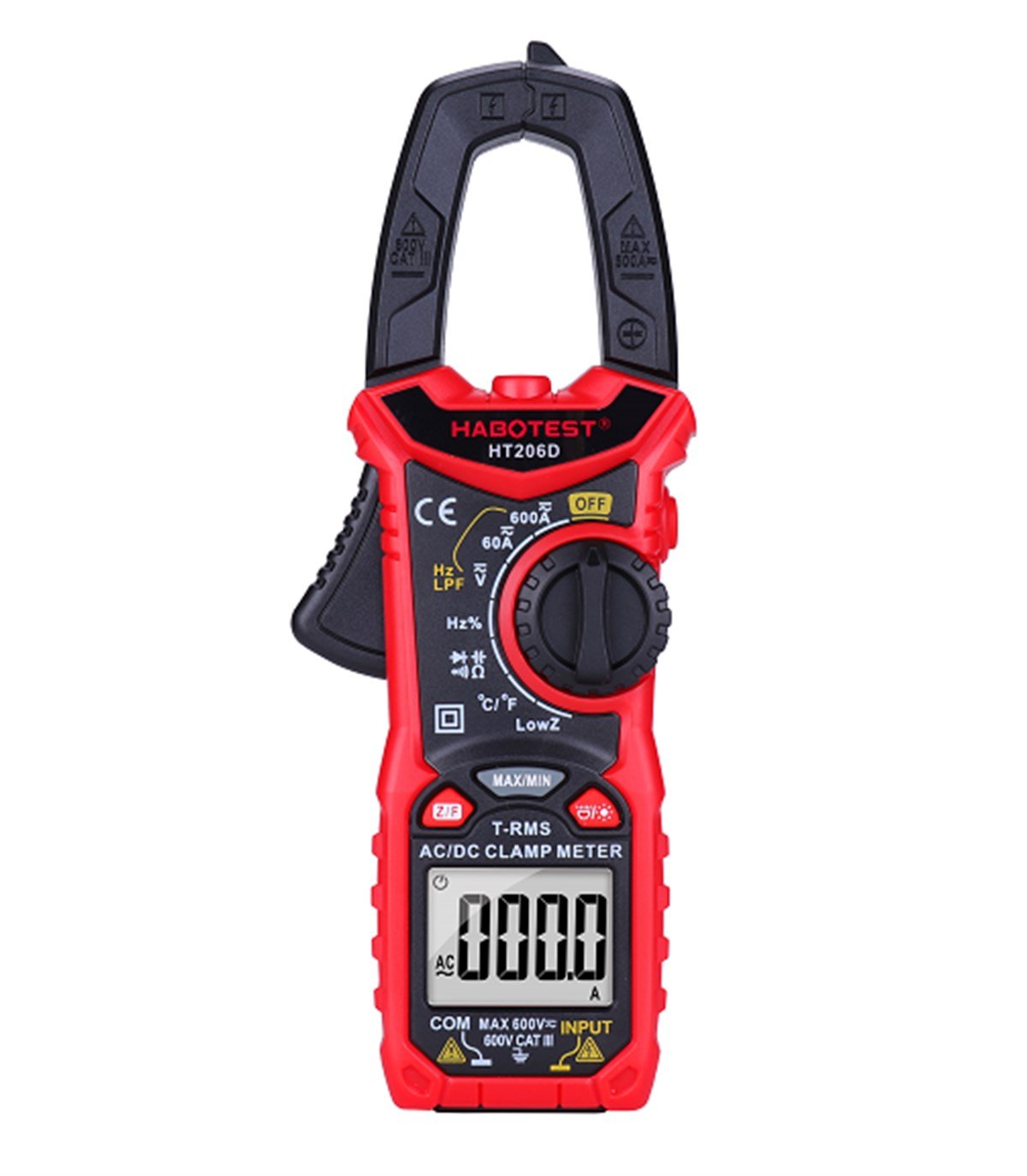

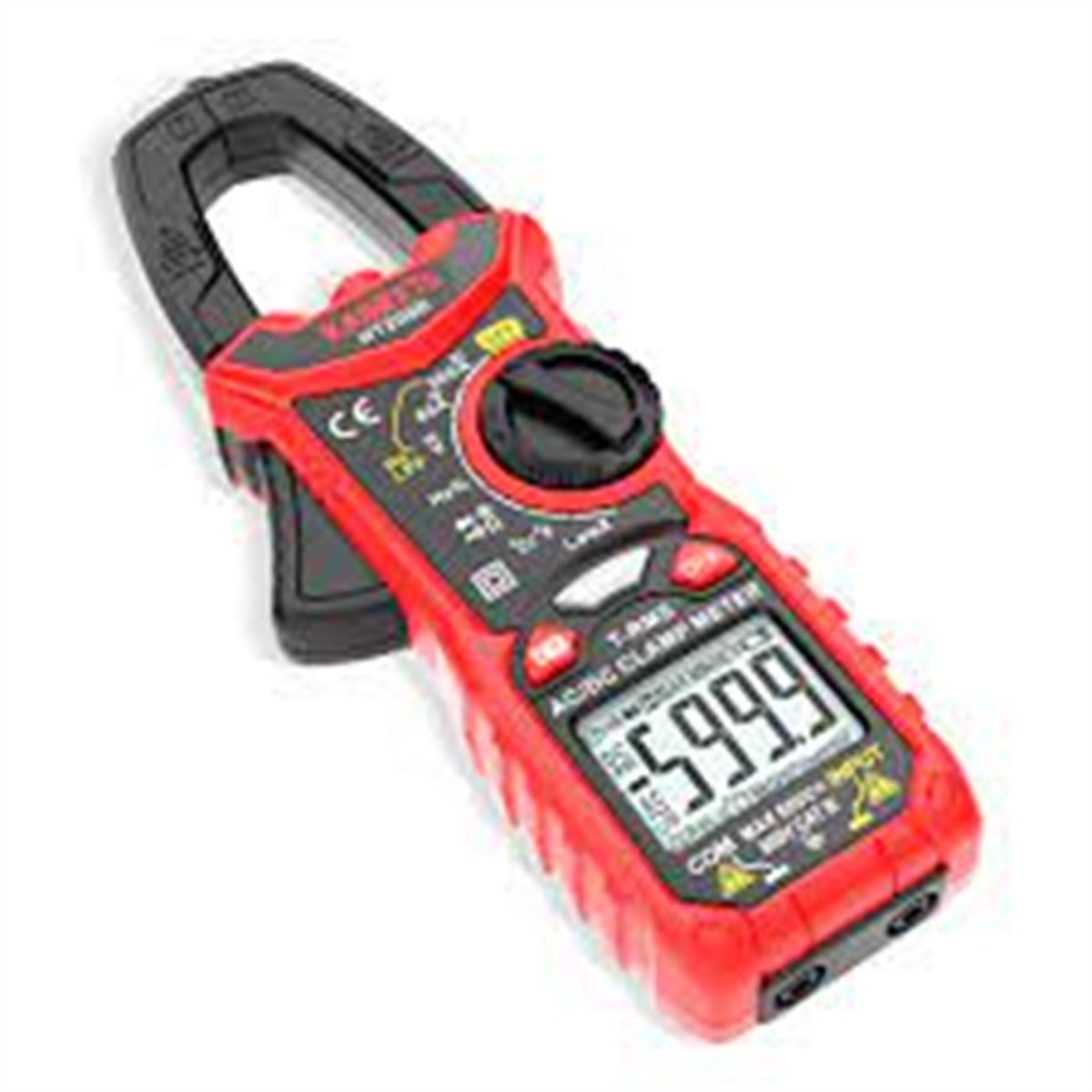

HABOTEST HT206D TRUE RMS DİJİTAL PENSAMPERMETRE ÖLÇÜ ALETİ ÖLÇÜM CİHAZI (HT-206D)

HT206D  AC /DC Digital Clamp Meter Multimeter Current Voltage Resistance Continuity NCV

Features

This DC/AC Clamp meter is updated version of all kind of similar models in the market, it features DCA ZERO,Diode Test, Continuity, , Data hold, TRUE RMS LPF Max/MIN , LowZ etc. functions with high accuracy and easy operation face.

HT206A/B/D Digital clamp meter

Function	Range		Accuracy
			HT206A	HT206B	HT206D
DC Voltage	600V		±(0.5%+3)
	600mV/6V/60V/600V/600V			±(0.5%+3)	±(0.5%+3)
AC Voltage	600V		±(1.0%+5)
	6V/60V/600V/600V			±(1.0%+3)	±(1.0%+3)
DC Current	6A/60A/600A				±(2.5%+5)
AC Current	6A/60A/600A		±(2.5%+5)	±(2.5%+5)	±(2.5%+5)
Resistance	6kΩ/60kΩ		±(1.0%+3)
	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ			±(1.0%+3)	±(1.0%+3)
Capacitance	10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF			±(4.0%+3)	±(4.0%+3)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz			±(0.5%+5)	±(0.5%+5)
Duty	1%~99%			±(1.0%+2)	±(1.0%+2)
Temperature (°C/°F)	-40°C~1000°C			±(1.0%+2)	±(1.0%+2)
	-40°F~1832°F			±(1.0%+2)	±(1.0%+2)
Counts			6000 counts	6000 counts	6000 counts
Auto/Manual range			Manual	Auto	Auto
Continuity			√(sound and light alarm)	√(sound and light alarm)	√(sound and light alarm)
Diode test				√	√
Data Hold			√	√	√
NCV				√(sound and light alarm)	√(sound and light alarm)
Back light			√	√	√
Flashlight			√	√	√
DCA ZERO					√
Low battery indication			√	√	√
Auto power off			√	√	√
True RMS				√	√
LPF				√	√
MAX/MIN			√	√	√
LowZ				√	√
Power		2xAAA(1.5V)Batteries
Weight
Size
Safety Rating		EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 600V
