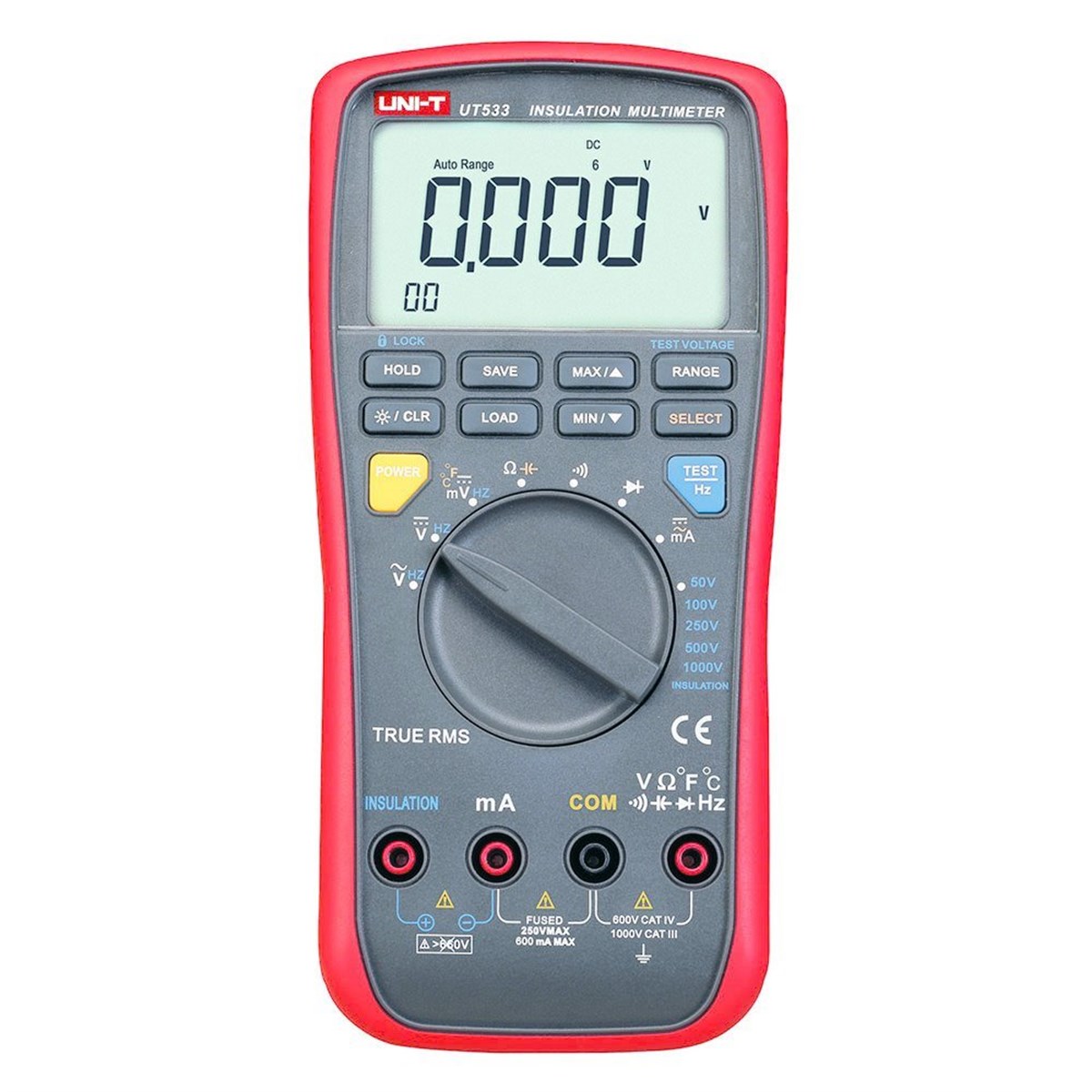

UNI-T UT 533 İzolasyon Megeri True RMS Multimetre UT533 (UT533)

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Gelince Haber Ver

Tavsiye Et

Yorum Yaz

Unit UT 533 Toprak Megeri ve Multimetre

Teknik Özellikler

pecifications	Range		Best Accuracy
Model			UT531	UT533
Insulation Resistance(Ω)	Test Voltage	500V/1000V	0%～10%
		250V/500V/1000V
		50V/100V/500V/1000V/2500V		0%～10%
	50V	0.1MΩ~50.0MΩ		±(3%+5)
	100V	0.1MΩ~100.0MΩ		±(3%+5)
	250V	0.2MΩ~99.9MΩ		±(3%+5)
	250V	100MΩ~250MΩ		±(3%+5)
	500V	0.5MΩ~99.9MΩ	±(3%+5)	±(3%+5)
	500V	100MΩ~500MΩ	±(3%+5)	±(3%+5)
	1000V	4.0MΩ~99.9MΩ	±(3%+5)	±(3%+5)
		100MΩ~600MΩ	±(3%+5)
		100MΩ~999MΩ		±(3%+5)
		1.00GΩ~2.00GΩ		±(5%+5)
	Short-Circuit Current	<2mA	√	√
Multimeter Specifications
DC Voltage (V)	60mV/600mV/6V/60V/600V/1000V		±(0.3%+4)	±(0.3%+4)
AC Voltage（50Hz~1KHz）	6V/60V/600V/1000V		±(1%+3)	±(1%+3)
DC Current (A)	60mA/600mA		±(1.0%+2)	±(1.0%+2)
AC Current（50Hz~1KHz）	60mA/600mA		±(1.5%+2)	±(1.5%+2)
Resistance (Ω)	600Ω/6KΩ/60KΩ/600KΩ/6MΩ/40MΩ		±(0.9%+2)	±(0.9%+2)
Capacitance (F)	10nF/100nF/1μF/10μF/100μF		±(3%+5)	±(3%+5)
Frequency (Hz)	60Hz/600Hz/6KHz/60KHz/600KHz/1MHz		±(0.1%+3)	±(0.1%+3)
Temperature (°C)	-40°C ～ 537°C			±(1%+10)
Temperature (°F)	-40°F～998°F			±(1%+18)
Features
Display Count			6000	6000
Auto Range			√	√
True RMS			√	√
Diode			√	√
Auto Power Off			√	√
Continuity Buzzer			√	√
Low Battery Indication			√	√
Data Hold			√	√
MAX/MIN			√	√
Data Logging			99	99
LCD Backlight			√	√
Full Icon Display			√	√
General Characteristic
Power	1.5V Alkaline Batteries（LR6)×6
LCD Size	81mm X 46mm
Product Color	Red and Grey
Product Net Weight	505g
Product Size	96.7mm X 202.8mm X46 mm
Standard Accessories	UT531-Batterise, Test Lead, Alligator Clip, Carrying Bag
Standard Accessories	UT532/533-Batterise, Test Lead, Alligator Clip, Point Contact Temperature Probe, Carrying Bag
